Friedrich Richter - Tank Dipping Tapes of Carbon or Stainless Steel according to IPM Specification
13 mm wide, 0,2 mm thick
Bright raised markings in natural steel color on dark etched background.
Accuracy: under a tension of 15N and a reference temperature of 20°C +/-1,5 mm for each 30 m. length.
Start of tape: a brass hook with locking screw is attached to the tape to keep the weight secure.

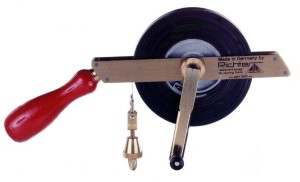

Frame: Strong brass frame with winding drum of metal and oblique wooden handle, tape rolls out near the handle (earthling of frame at extra cost).
|
Material |
Type |
Graduation |
Length (m) |
|
Carbon Steel |
414-MS/IPM 8 |
mm |
10 |
15 |
20 |
25 |
30 |
50 |
|
Stainless Steel |
464-MS/IPM 8 |
mm |
10 |
15 |
20 |
25 |
30 |
50 |
Dip weights of brass – Torpedo pattern
Type B-m: diameter 30 mm, distance to inside of eyelet 152,4 mm., mm-graduation, weight 675 g
Type W-m: diameter 45 mm, distance to inside of eyelet 152,4 mm., mm-graduation, weight 1.600  g
|
